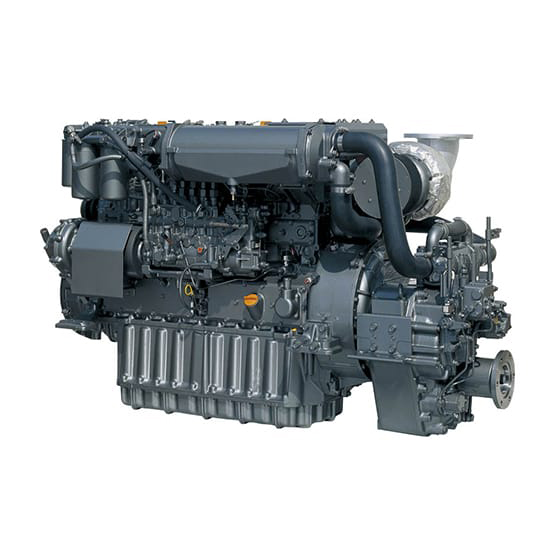

6CXBM
Liên hệ
PRINCIPAL DATA
No.of Cylinder 6
Cylinder Bore 110mm
Stroke 130mm
Displacement [lit] 7.413
Combution system Direct injection
Aspiration Turbocharger+Intercooler
No.of Cylinder 6
Cylinder Bore 110mm
Stroke 130mm
Displacement [lit] 7.413
Combution system Direct injection
Aspiration Turbocharger+Intercooler
| Model | 6CXBM-GT | 6CXBM-GT | ||
| Rating | H | M | L | S |
| Rated output [kW(mhp)/rpm] | 265(360)/2400 | 294(400)/2500 | 341(464)/2700 | 374(509)/2700 |
| Emission | IMO Tier, RVIR Tier Ⅱ | |||
| Starting system | Electric starting motor (24V 5.0kW) | |||
| Cooling system | Heat exchanger | |||
| Size of flywheel housing and flywheel | SAE #3 and 11-1/2 in. | |||
| Dry mass (without marine gear) [kg] | 856 | |||
| Dimensions (L×W×H) [mm] | 1390×901×989 | |||
| Model | YX-80 |
| Type | Hydraulic multi-disc clutch, wet type |
| Reduction ratio (Ahead) | 2.07 2.58 2.91 |
| Direction of rotation (propeller shaft) | Clockwise or counter-clockwise viewed from stern |
| Dry weight [kg] | 204 |
